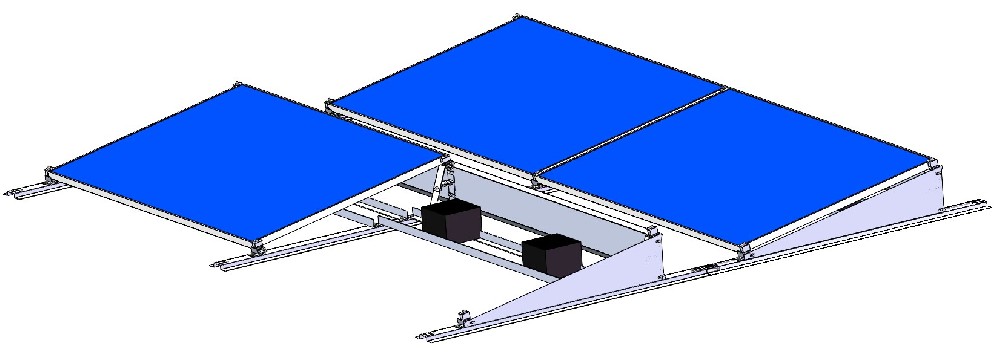

Ballasted Flat Roof Mounting Landscape
Install site:Flat roof
Tilt Angle:Flushed with the roof (10~60 deg)
Building Height:Up to 20m
Max Wind Speed:<60m/s
Snow Load:<1.4kn/m2
Install site:Flat roof
Tilt Angle:Flushed with the roof (10~60 deg)
Building Height:Up to 20m
Max Wind Speed:<60m/s
Snow Load:<1.4kn/m2
Material:Aluminum alloy AI6005-T5 & Stainless steel 304(A2），EPDM
Color:Natural or Customized
Warranty:12 years warranty and 20 years service life.

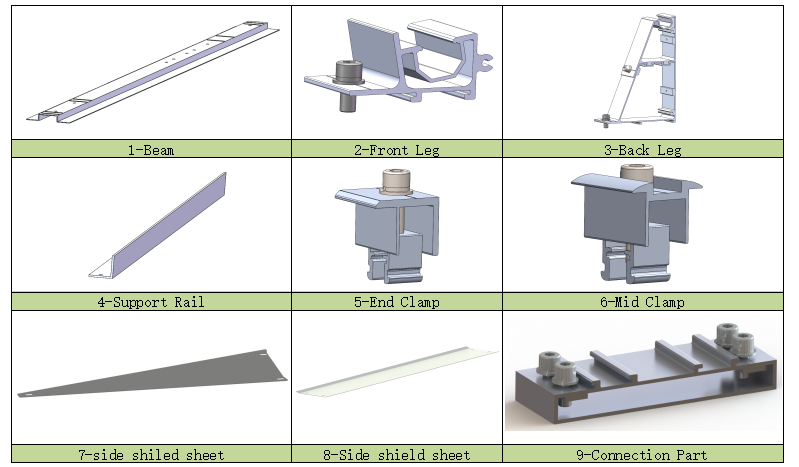

Main Parts for the landscape Flat Roof Mounting Structure
