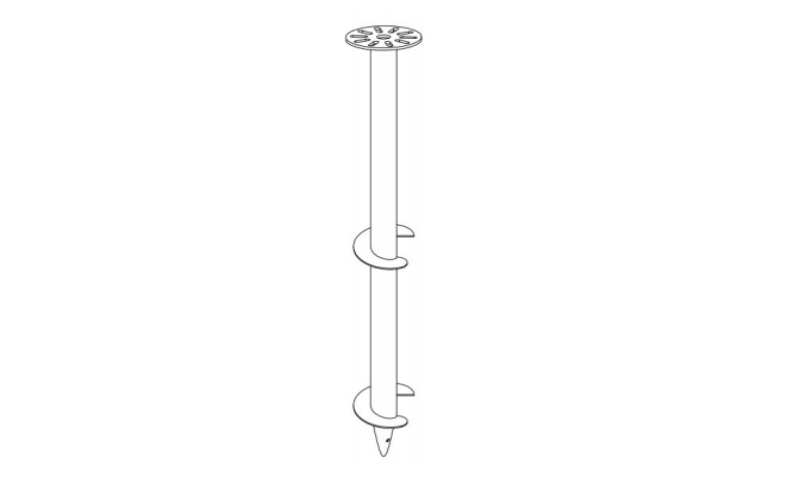

Customizing Ground Screw
Material:Q235B/Q345B
Surface:Hot-Dip-Galvanized
Material:Q235B/Q345B
Surface:Hot-Dip-Galvanized
| Points Confirmed : |
| 1.Top Type and Pipe Type Available |
| 2.Length * Diameter |
| Length：1m , 1.2m , 1.6m, 1.8m, 2m , 2.5m ， Max. 3 m |
| Diameter Available：Normal 76mm, Max. 89mm |
| 3.Thickness of pipe |
| 3mm, 2.75mm ，2.5mm |

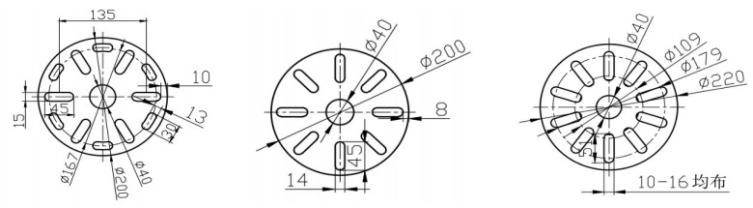

| 4.Top：Size，Holes，Type of Holes |
| Normal 200mm 8 Shear Holes 10 Shear Holes |
| Diameter of Top : 180 , 200, 220 , Max. 300mm |
| Note : 10 Holes have to require diameter 220mm，or the area will be not enough . |
| 5.Type of Thread : |
Normal Thread Screw : |
2 pcs Big Threads：  |
4 pcs Big Threads： |
| 6.Thread Information : |
| Normal Screw Thread： Thread Width: 10-20mm ， Thread Thickness: 2mm |
| Big thread：thread Width: 50mm , 62mm , 72mm ，thread Thickness: 4mm |
Solar Systems Ground screw foundation

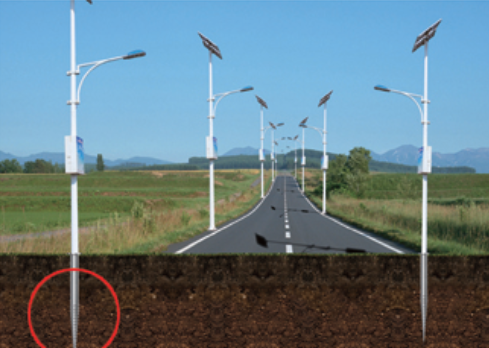

Solar Light ground screw

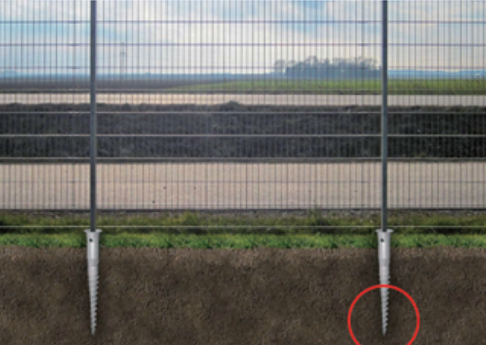

Fence system ground screw

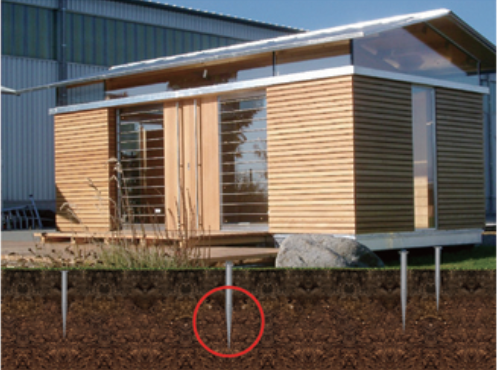

Building foundation
