1800mm Flange top Ground Screw

There is flange type ground screw and Tube type ground screw.

Flange Series Ground Screw

Warranty:10 Years

Service Life:25 Years

Packing:In Pallet, Container

Delivery Time:3 Days for Sample 2-3 weeks for mass production

Flange Series Ground Screw

PV construction ground screw,helical ground screws,Flange ground anchor,2100mm Ground Screw,2500mm Ground Screw.50Ksi Ground Screw.

We offer standard 2100mm /2500mm 50 Ksi  yield strength steel flange type ground screw,and can offer the length you needed.

Part Number	XG-GS-F1000	XG-GS-F1200	XG-GS-F1600	XG-GS-F1800	XG-GS-F2100
Ground Screw   Length	1000	1200	1600	1800	2100
Outer Diameter	76	76	76	76	76
Weight	6.7	8	10.3	11.3	16.7
Surface	Hot Dip   Galvanized	Hot Dip   Galvanized	Hot Dip   Galvanized	Hot Dip   Galvanized	Hot Dip   Galvanized

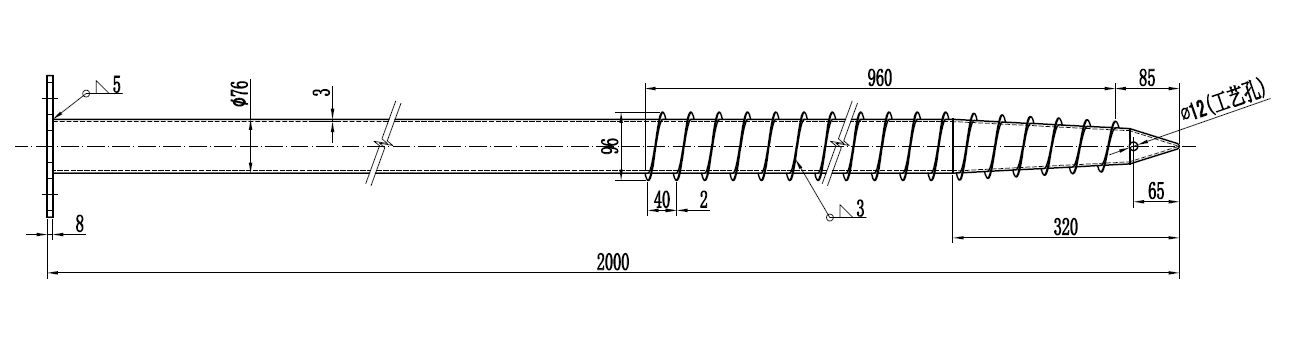

Flange type ground screw drawing.

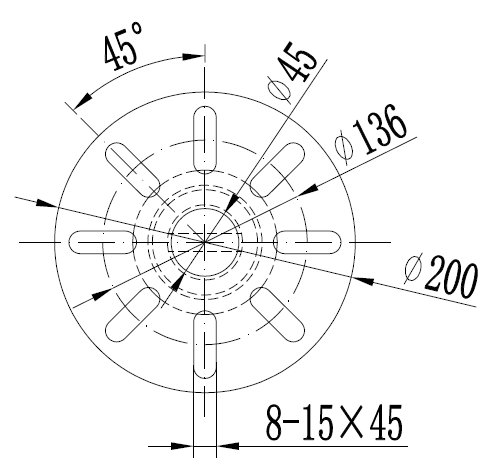

Flange drawing:

2100 mm ground screw details
