Big Thread Ground Screw
Material:Q235/Q345
Surface:Hot-Dip-Galvanized
Material:Q235/Q345
Surface:Hot-Dip-Galvanized
Big Thread Ground Scew
Ground Screw is made of Q235 material.

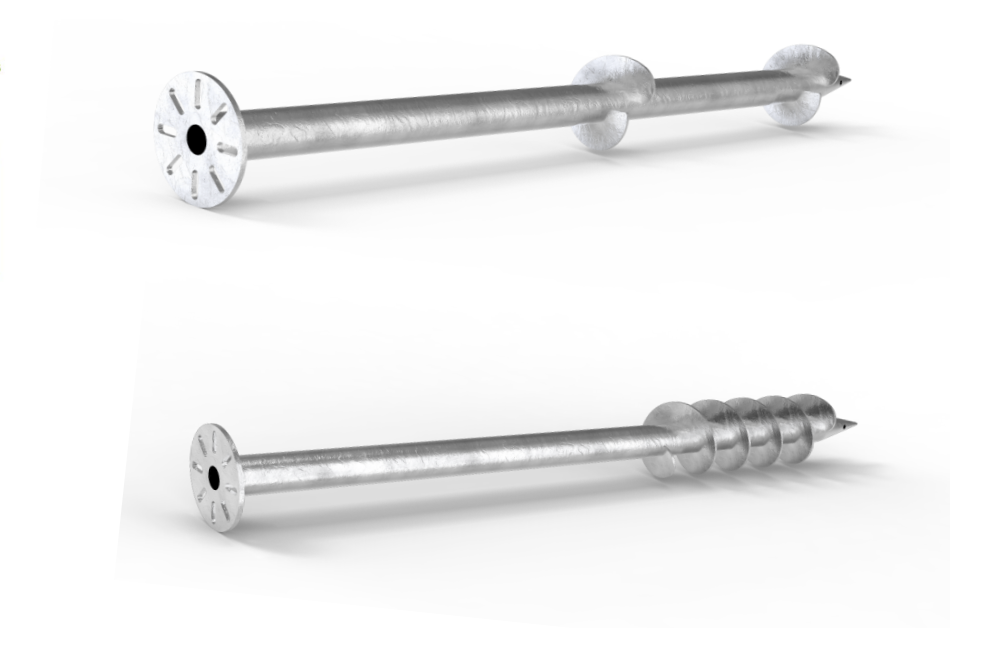

We have flange top and tube top types with different specification.
Our standard thickness is 3mm,3.5mm and 2.75mm and length with 1200mm,1600mm,1800mm,2000mm.The length and size could also be customized.
It can be used for many kinds of application,like Timer-Frame Construction;Advertising and traffic systems;Urban,Garden and Landscape Consctruction;Hall and container Construction;Fencing Systems,Solar systems;Flag Poles &Banners etcs.
| Advantages |
| ✬Compatibility with all type of structures. Our technical department will adapt the head of our ground screw piles to whatever the need of the customer is. |
| ✬Foundation solution concrete free No need of Concrete base. |
| ✬Surrounding areas remains unspoiled The special configuration of our products allows the insertion without performing land preparation works,which allows a significant cost reduction. |
| ✬Easy removal simple and easy to relocate One of the main adavantages of our ground screw piles is the possibiity of removing them,reducing the environmental impact and minimizing the removing costs. |
Specification
| Surface | Material | Height(mm) | Diameter(mm) | Galvanized Surface | Thickness(mm) |
| Hot Galvanized | Q235/Q345 | Customized | 76/60 | ≥80㎛ | 3.5/2.75/3.0 |
